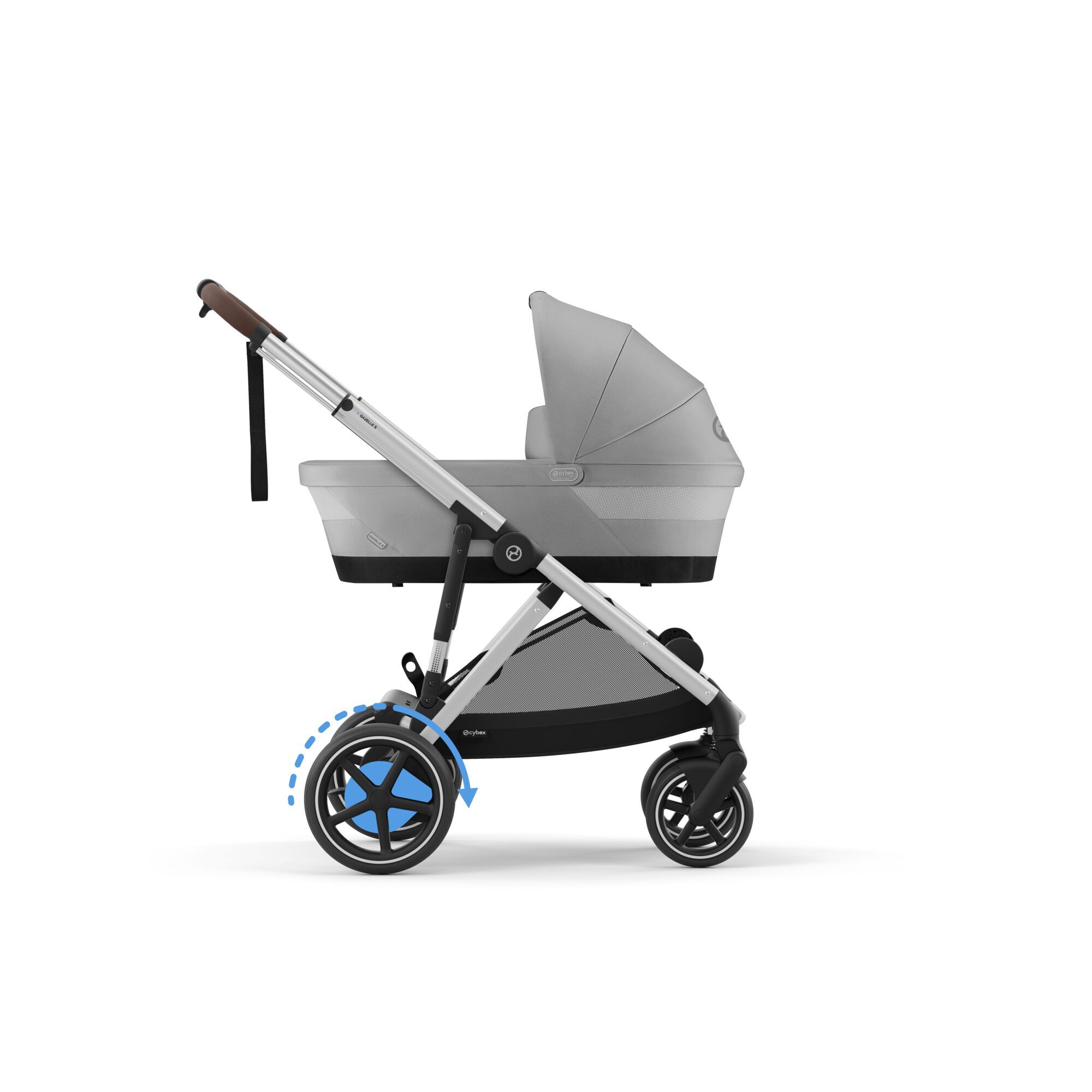

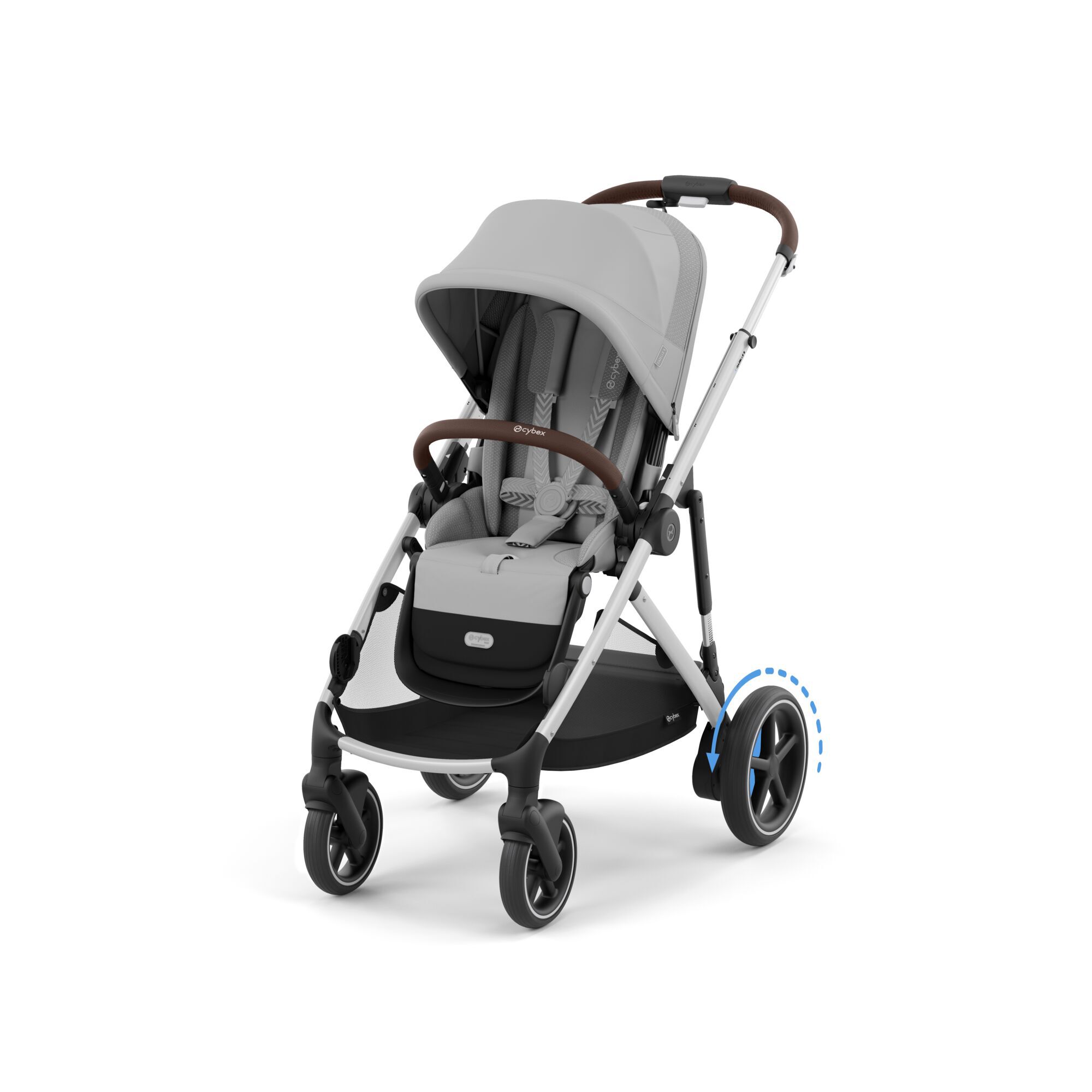

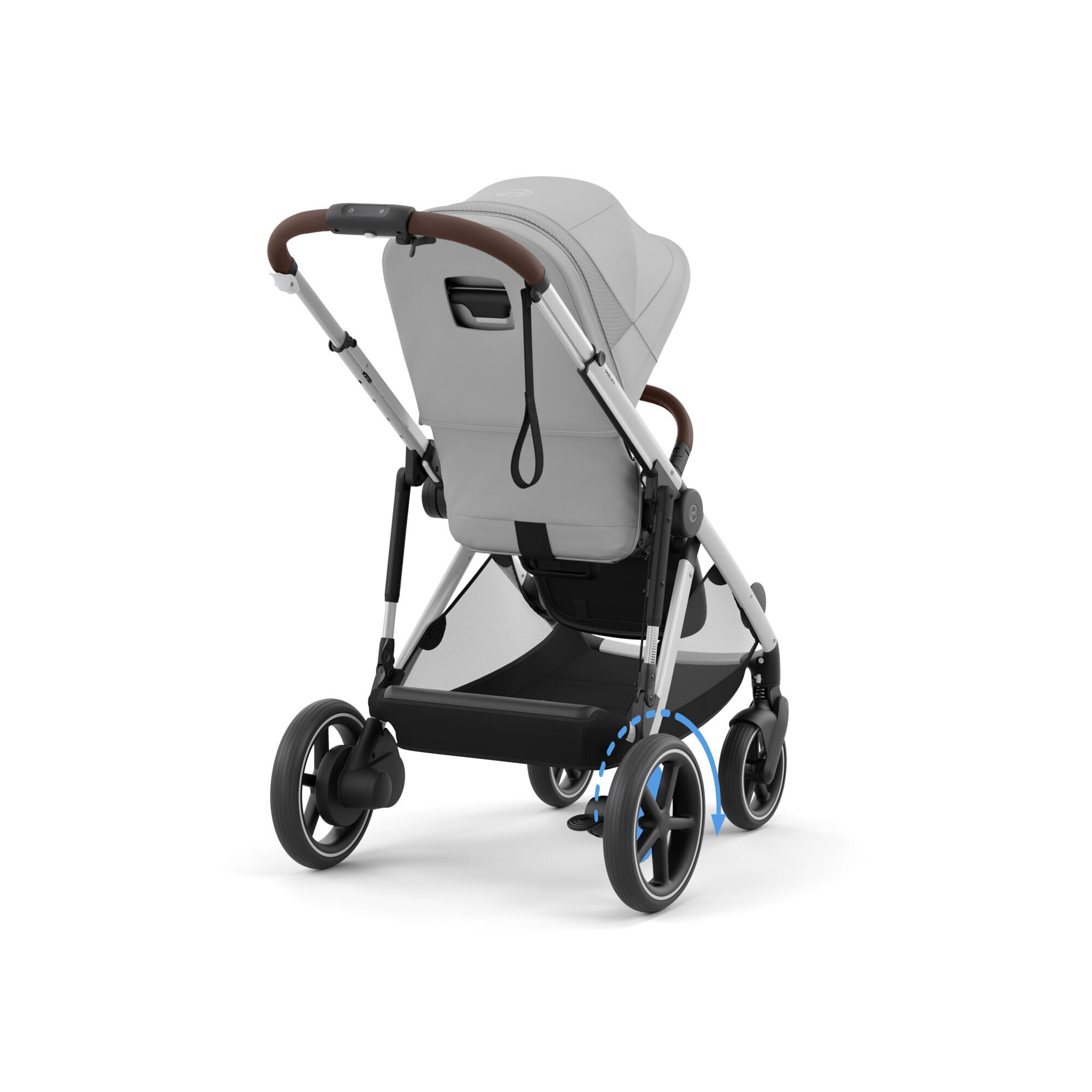

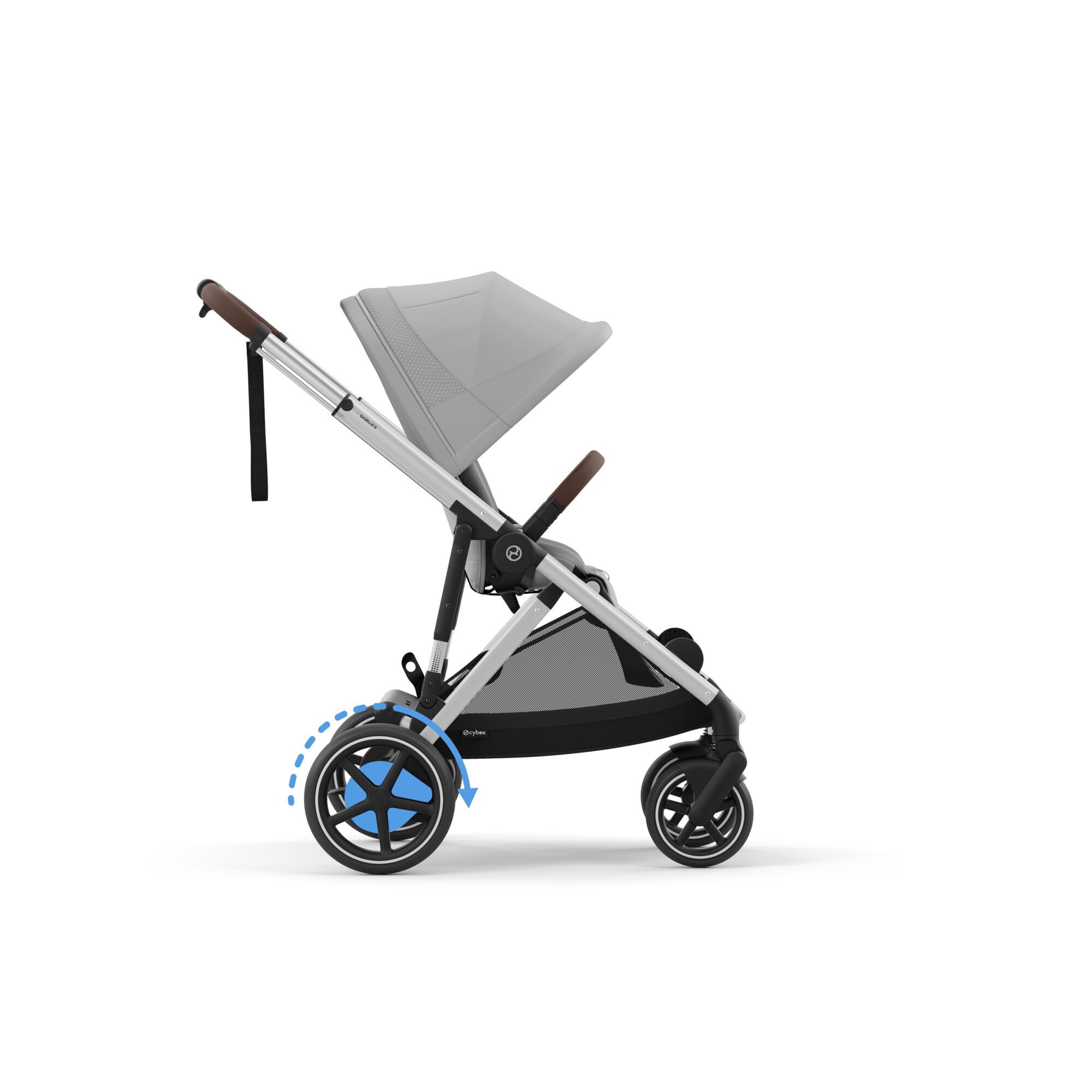

e-Gazelle S

Give everyday life a boost with the e-Gazelle S pushchair. Take hills and rough ground in your stride thanks to e-powered uphill and uneven surface support, specially designed to give your baby and their sibling a smooth ride.
  • Age 0 - approx. 4 yrs
  • Weight 22 kg
  • Free Snogga Footmuff
    Stone Grey (Silver Frame)
    Colour: Stone Grey (Silver Frame)
    Product not available anymore
    Quick Links

    Awards

    Award 0
    Award 1

    Video

    How to Use Your e-Gazelle S

    How to Set Up Your e-Gazelle S

    How to Attach the Seat Fabric

    How to Remove the Seat Fabric

    How to Attach the Gazelle S Cot

    How to Attach an Infant Car Seat

    20+ Configurations

    Measurements

    Dimensions – Unfolded

    Length
    945 - 1075 mm
    Width
    660 mm
    Height
    1000 - 1100 mm
    Weight
    14.7 kg
    Dimensions – Unfolded

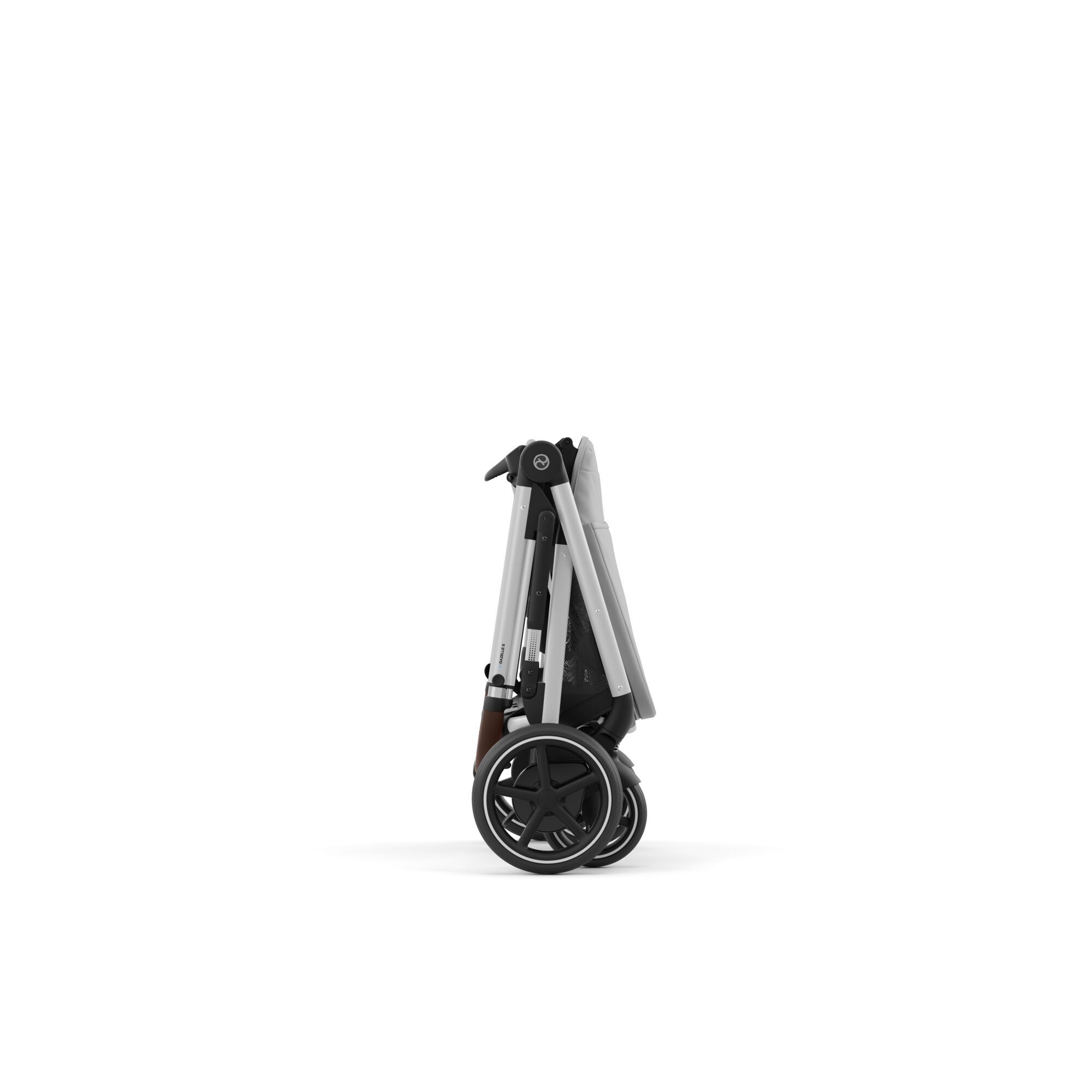

    Dimensions – Folded (most compact)

    Length
    360 mm
    Width
    565 mm
    Height
    775 mm
    Weight
    14.7 kg
    Dimensions – Folded (most compact)

    What is included?

    What’s included

    • e-Gazelle S frame including wheels
    • Seat Unit (hard parts and soft goods)
    • Shopping basket
    • Shopper basket
    • Bumper bar
    • Sun canopy
    • Battery and Charger
    • Gazelle S Cot rain cover
    • User guide

    Downloads

    Before purchase

    Where can I try out and/or buy the e-GAZELLE S?

    The e-GAZELLE S will be available at specially trained retailers and in our e-Commerce store.

    General

    Where can I get spare parts for my product?

    Spare parts are available from selected retailers. To find a store near you, simply go to the store locator on our website.

    Is the e-GAZELLE S heavier than a regular GAZELLE S?

    Yes, the e-GAZELLE S is 2.2 kg heavier than a regular GAZELLE S.

    Can I upgrade/retrofit my GAZELLE S to an e-GAZELLE S?

    No, as the technology is integrated into the e-GAZELLE S frame and separately certified.

    What is the Rocking Mode function and is it safe for my child?

    The rocking movement is modelled in a way parents rock their children in strollers to calm them down or help them fall asleep. The Rocking Mode function has 3 intensity modes: low, medium, and high. The lower intensity should be used from birth up to until the child is able to sit upright unassisted (approx. 6–9 months old). After this you can try the other intensity settings, however, please bear in mind that every child is unique and develops at a different rate. If you aren’t sure whether your child should be rocked in the e-GAZELLE S, we recommend consulting a paediatrician beforehand. Always carefully follow the instructions given in the user instructions. Ensure the stroller’s brake and front swivel wheels are locked before starting the rocking function. Do not use the rocking function on slopes or uneven surfaces, or in the presence of obstacles, walls, or stairs. Please monitor your child when using the rocking function. This function is suitable for children from birth up to approximately 4 years (22 kg). It is safe to use when the e-GAZELLE S is used with an infant car seat (up to 13 kg), GAZELLE S cot (up to 9 kg) or seat unit. If the child is in an infant car seat or seat unit, ensure the harness is closed according to standard safety instructions.

    Usage

    Can I use this stroller as a travel system?

    Yes, this stroller is travel system ready. You can attach a cot, an infant car seat or a seat unit to the stroller frame.

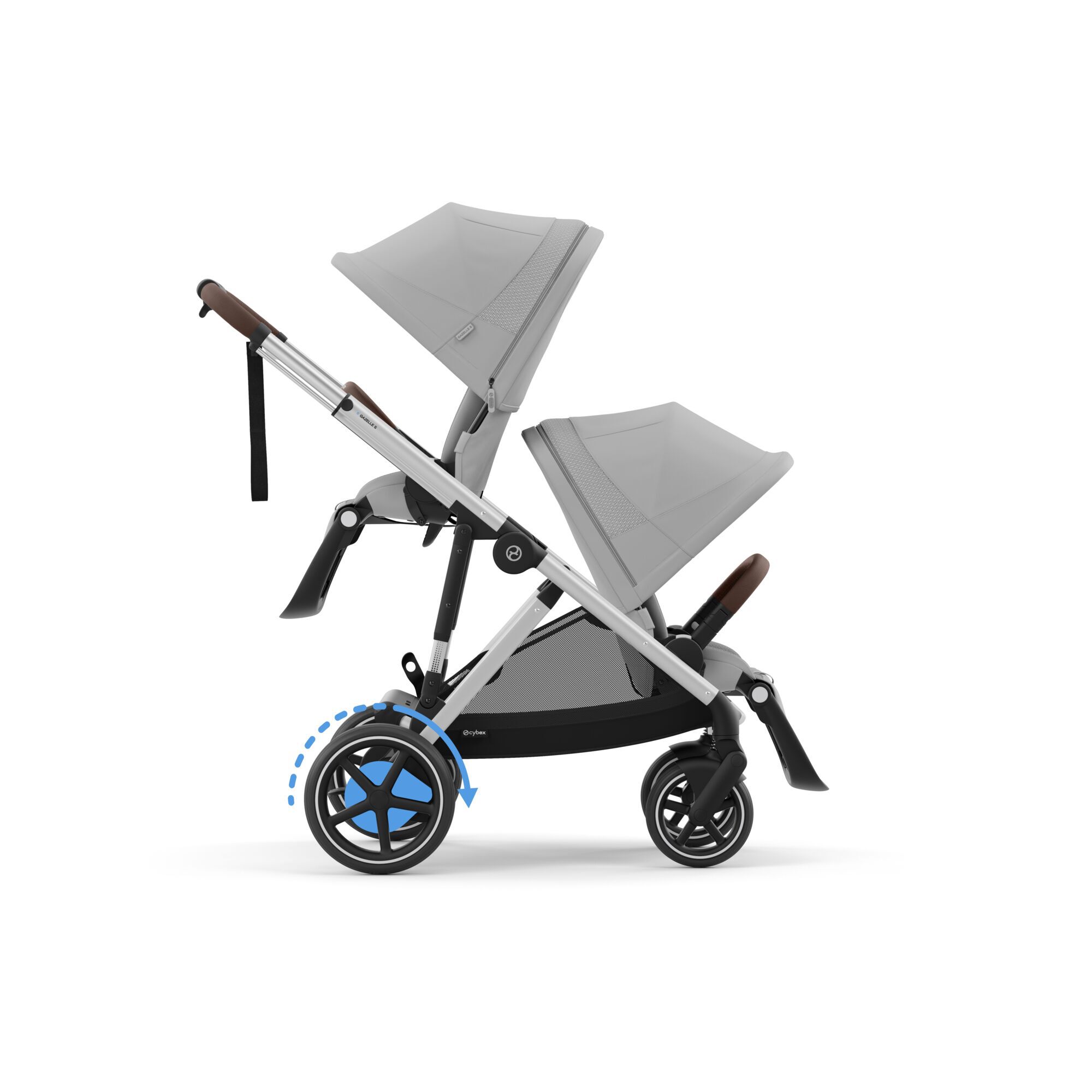

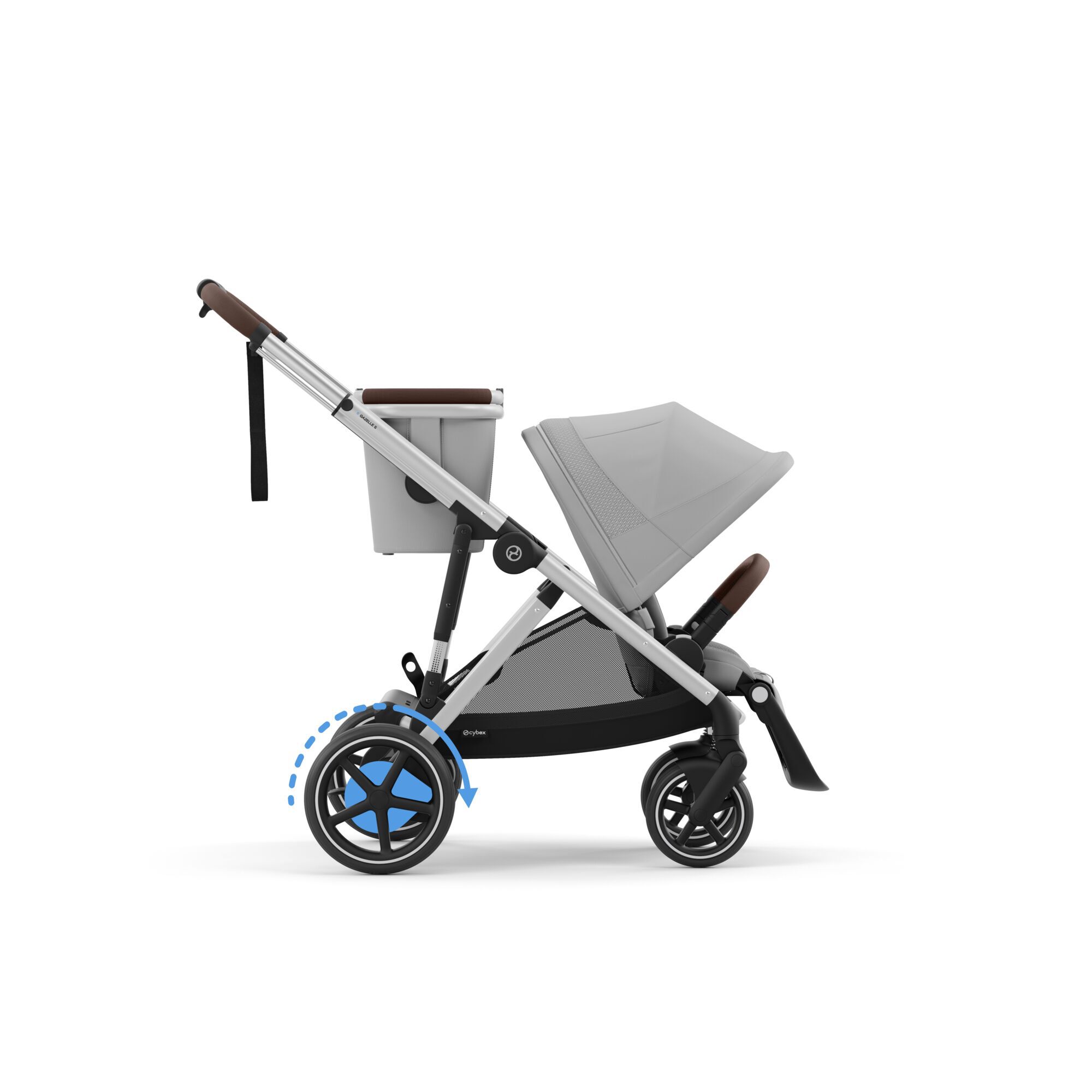

    How many configurations does this stroller have?

    The Gazelle S can support up to 23 different configurations of Gazelle S seat units, Gazelle S cots, infant car seats, and a detachable shopper basket. It can be used in the following modes: Single: For a single child, a Gazelle S cot, infant car seat or Gazelle S seat unit can be mounted onto the Gazelle S frame. A detachable shopper basket is also included on the frame to carry all of your day-to-day essentials. Sibling: To carry two children, the shopper basket can be replaced with another Gazelle S cot, Gazelle S seat unit or infant car seat to allow several different riding combinations. Twin: For twin babies, the Gazelle S can carry two Gazelle S cots, Gazelle S seat units or infant car seats. This allows the two children to travel with the same level of comfort.

    How do I attach the second seat and does it recline the same as the first seat?

    Strolling with siblings gives you all memories that last a lifetime. The Gazelle S second seat can only be attached to the upper adapter and only has 3 recline settings to ensure stability and safety. The main seat can fit in both the upper and lower positions but if the second seat is to be attached, the main seat will need to be at the bottom.

    Can I also use the e-GAZELLE S without assistance from the electronic functions?

    Yes, if you don´t turn on the power button the e-GAZELLE S can still be pushed around like a regular stroller.

    What happens if my e-GAZELLE S battery runs out while I’m using the Rocking Mode function?

    The Rocking Mode will be deactivated.

    Can I attach a Kid Board to the e-GAZELLE S as I can for a GAZELLE S?

    For safety reasons, you should never attach a Kid Board or any additional child platform/buggy board to your e-GAZELLE S.

    Is it possible to choose how much assistance I would like to have from the e-support?

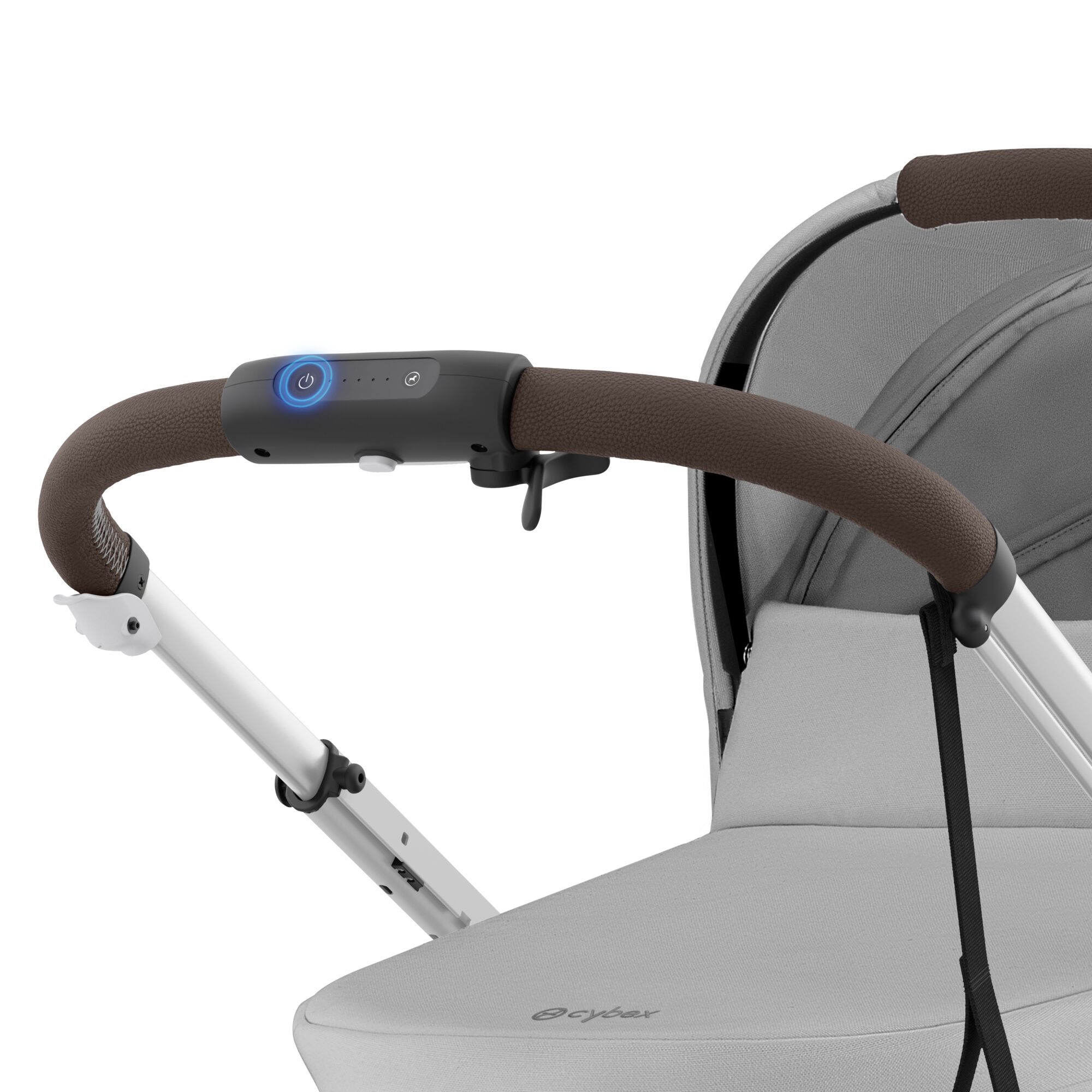

    Yes. The system is controlled by the lever on the handlebar. This reacts and adapts the assistance to the individual choice of the consumer.

    How do I fold my e-Gazelle S?

    You can fold your stroller away for storage or transportation in a few simple steps: 1) Engage the brake pedal 2) Lift the lever on the back of the seat unit and push the seat unit forward until it folds onto the frame. 3) Simultaneously push the 2 white buttons on the user interface on the handlebar with one hand and at the same time lift the lever on the left-hand side of the handlebar. 4) Push the handlebar down into its telescopic tube with a click. 5) Pushing the center of the handlebar downwards now lets the stroller frame fold in until it locks securely in place, ready to be stored away. You can see how it’s done and much more on our dedicated CYBEX YouTube channel.

    Functionality

    What is a one-pull harness?

    This is a brand new feature for CYBEX strollers. Rather than tightening the harness straps individually, which can be time consuming, the one-pull harness can be tightened simply by pulling a strap at the base of the seat with one hand. This makes getting your child onboard quick and easy, and also helps you find the perfect form-hugging fit for your child’s comfort and safety.

    How do I charge the battery and how often does it need recharging?

    A charging cable is provided in the product package. You have a choice between directly attaching the cable to the stroller, or detaching the battery from the rear axle for charging. Never leave the e-stroller unattended while charging the battery. The battery must be charged until a green light shows on the charger. Charging time is around 3.5 hours, although when you charge the e-stroller for the first time this can take up to 6 hours depending on the battery status when you unpack the product. The battery run time depends on external conditions such as surface characteristics, temperature and incline, as well as the load, for example the weight of the child and items in the basket. In fair conditions (flat terrain with short hills and a few uneven surfaces, an outside temperature of approximately 20˚C, a load of 9–10 kg) the battery will last for approximately 45 km. In difficult conditions (outdoor terrain with short hills and many uneven surfaces, an outside temperature of approximately 10–20˚C, a load of 15 kg) the battery will last for approximately 20 km. In extreme conditions (rugged terrain with very long and steep hills and mostly uneven surfaces, an outside temperature below 10˚C, a load of 25 kg) the battery will last for approximately 8 km. The values mentioned above are estimates. The real values might differ or vary according to usage, external influences and the condition of the battery. Additionally, the capacity of the e-stroller's lithium-ion battery decreases with age and usage. This might have an impact on battery run time. The values mentioned do not assume any liability.

    How does the uneven surface support work?

    All strolling e-powered support is controlled by the acceleration lever on the handlebar.

    What level of performance will I get from the electronic functions?

    The smart hill support can help you climb a slope of up to approximately 25% (or approximately 14°). This is similar to the incline of Lombard Street in San Francisco. Up to this point it will take little effort to push the e-GAZELLE S up the incline. The electric motor will keep providing support until the e-GAZELLE S reaches a speed of 5 km/h. If the stroller moves faster than this then the support will stop.

    What is the Rocking Mode function and how can I activate it?

    The Rocking Mode is a world-first feature helping you to calm your baby down and get them to sleep, without even having to touch the stroller. At the touch of a button on the user interface of your e-GAZELLE S will move back and forth, mimicking the gentle rocking motion every parent knows by heart. Three intensity settings are available so you can find the perfect rhythm for your child. So, you can get on with your daily tasks or simply take a well-earned break while your child is gently rocked to sleep. However, please never leave your child unattended while using the rocking function. Activating the rocking feature is easy. Simply engage the brake, ensure the front wheels are locked, press the power button and then press the rocking mode button. The length of time you press it determines the intensity you activate: one light for the first level, two lights for the second and three lights gives you the maximum level of rocking.
